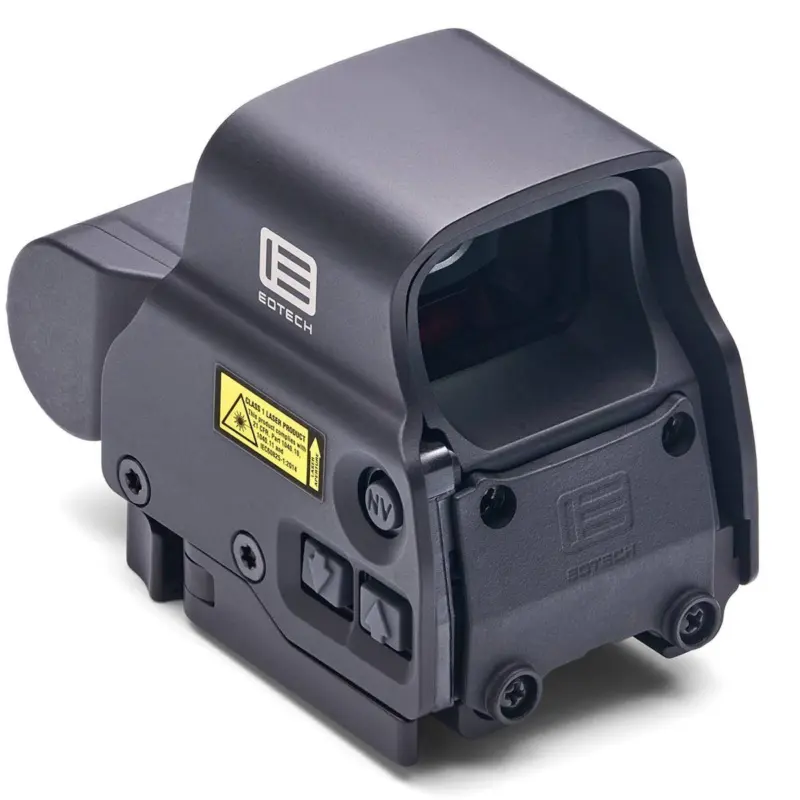

EXPS3 DCR
The EXPS3-DCR features the Danger Close Reticle (DCR) that provides fast and accurate shots at typical distances but also an effective close combat aiming point. Housed in the popular EXPS form factor, offering true two eyes open shooting for fast target acquisition, night vision compatible settings and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.
The DCR Reticle is a modification of the popular speed ring circle/dot reticle but addresses the point of aim (POA), point of impact (POI) shift that occurs with close engagements when the primary dot is zeroed at distance. The 68MOA width is maintained but the top of the circle is removed providing a cleaner look. The bottom of the ring is also removed and replaced with an easy to find chevron providing that height over bore adjustment needed for dangerously close shot placement. With a .223/5.56 rifle zeroed at 50 yards, the DCR would provide three confident aiming points to include a long distance 200-yard zero as well as a 7-yard solution.
Description:
- Night Vision Compatible
- L X W X H 3.8 x 2.3 x 2.9 (96.5 x 58.4 x 73.7 mm)
- Weight 11.2oz (317.5g)
- Water Resistant 33ft. (10 m) depth
- Mount 1 Weaver or MIL-STD-1913 rail
- Windage & Elevation Adjustment 0.5 MOA per click
- Brightness 20 daylight settings; 10 additional settings for Gen I through III+ night vision devices
- Power Source 1 x CR123 battery
- Battery Life 1,000 continuous hours at nominal setting 12 at room temperature
- Operating Temperature -40°F to 140°F (-40°C to 60°C)
- Country of Origin Made in USA
